    Automatic Splice (HAS）

    HOTLINK HARDWARE with its independent R&D and operation team, Hotlink Hardware can provide HAS series with competitive pricing and technical service.

    Features:

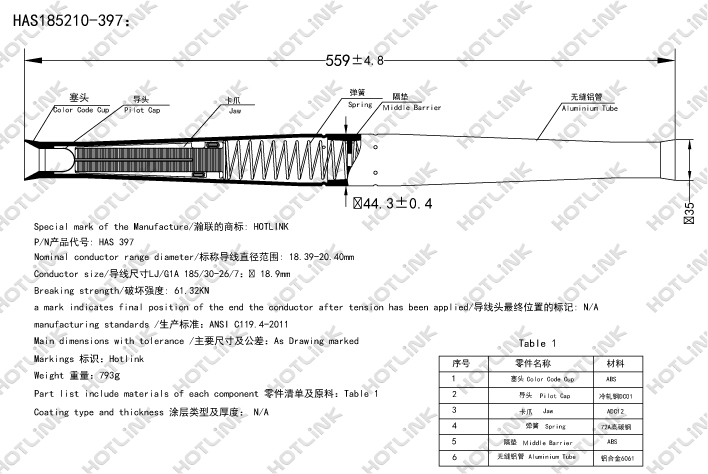

    HAS Products Series

    Hotlink Automatic Splice (HAS） Rated to hold a minimum 90%-95% of RBS of the strand used, can ensure quick and reliable overhead tension splice with fast and easy installation. The conductor simply slips into color-coded, funnel-shaped end piece and enters the pilot cap automatically with a simple push. The pilot cap guides the conductor pass the set of serrated jaws and into the center of HAS.

    HAS are used on ACSR, AAC, AAAC,(Sparrow,Pigeon) conductor for an instant, positive and automatic connection, ANSI C119.4 Full Tension Class A connector.

    Product Description

  • Color-coded end piece provide instant visual identification of maximum conductor size
  • Funnel-shaped end piece quickly guides conductor into right position for insertion.
  • Pilot cap envelops strands and guides conductor pass serrated jaws and into splice center.
  • Precisely die-casted jaw provides optimum contact area for greater range of conductor sizes, reducing inventory stocking requirements.
  • Compressing stainless-steel spring positions jaws for positive conductor acceptance.
  • Tubular center stop automatically determines proper insertion length of conductors.
  • High-strength, aluminum alloy tube covers connection for superior corrosion protection and lasting service life.
  • Instruction sheet put each in poly bag, save time and eliminate potential for errors during installation.

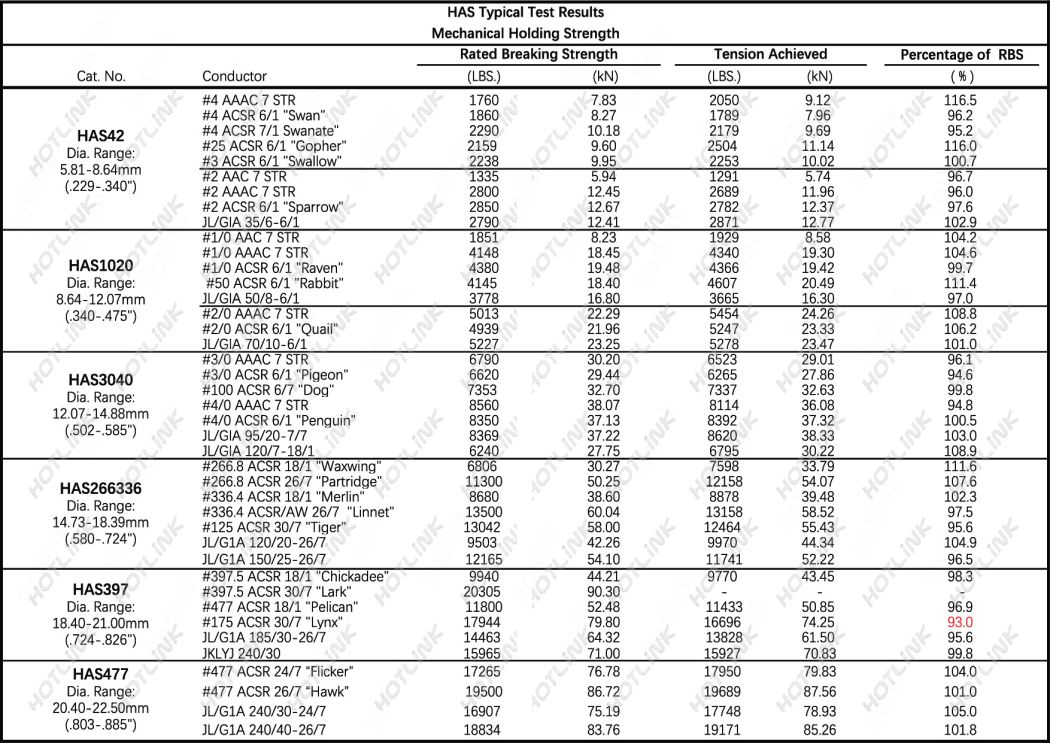

    • HAS Tentile Test Data Sheet

  • Please note that QuickWise and QuickLink are NOT IDENTICAL WITH wirevises and wirelinks being sold in each market, but with equivalent or better performances in certain respects.

    • Product images

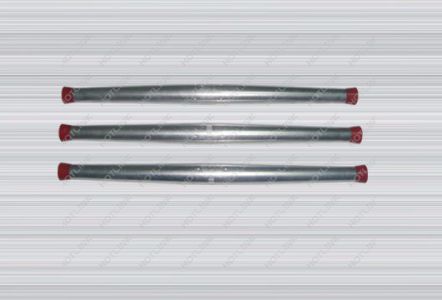

    HAS Automatic Splice
